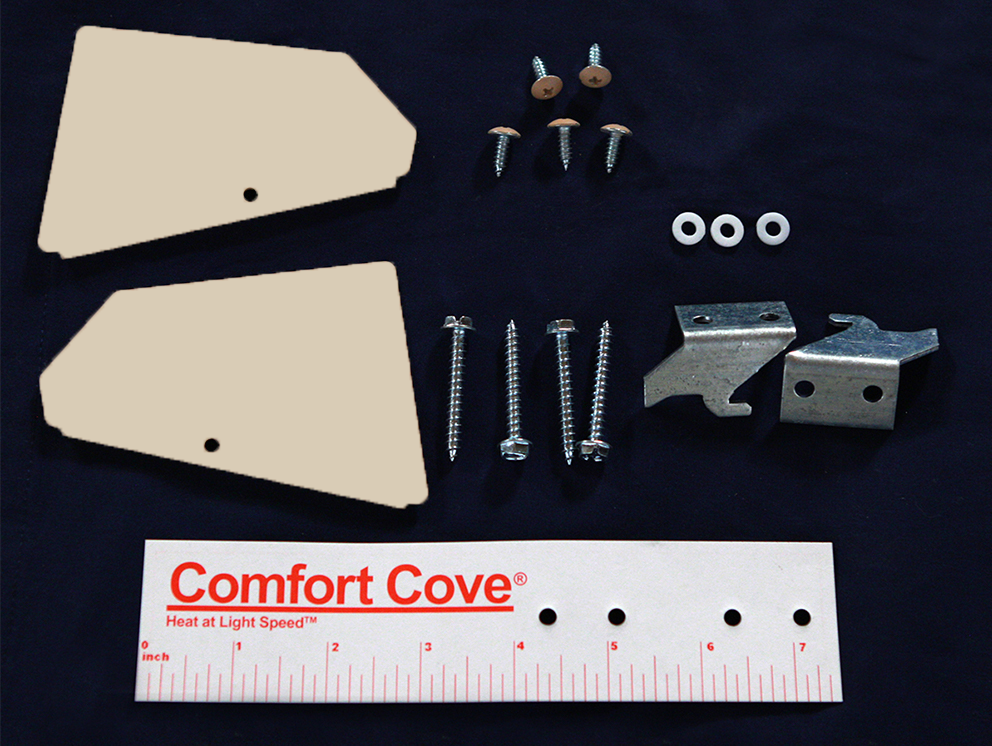

Parts Renewal Identification

Catalog Number	Voltage	Wattage	Amperes	Length
C-4512 C-4508 C-4524 C-4527	120 208 240 277	450 450 450 450	3.8 2.2 1.9 1.6	34" 34" 34" 34"
C-6012 C-6008 C-6024 C-6027	120 208 240 277	600 600 600 600	5.0 2.9 2.5 2.2	47" 47" 47" 47"
C-7512 C-7508 C-7524 C-7527	120 208 240 277	750 750 750 750	6.2 3.8 3.1 2.7	59" 59" 59" 59"
C-9012 C-9008 C-9024	120 208 240	900 900 900	7.8 4.3 3.8	71" 71" 71"

Catalog Number	Voltage	Wattage	Amperes	Length
C-9027	277	900	3.2	71"
C-10512 C-10508 C-10524 C-10527	120 208 240 277	1050 1050 1050 1050	8.8 5.0 4.4 3.8	83" 83" 83" 83"
C-12012 C-12008 C-12024 C-12027	120 208 240 277	1200 1200 1200 1200	10.0 5.8 5.0 4.3	94" 94" 94" 94"
C-15008 C-15024 C-15027	208 240 277	1500 1500 1500	7.2 6.25 5.4	106 1/4" 106 1/4" 106 1/4"
C-18008 C-18024 C-18027	208 240 277	1800 1800 1800	8.6 7.5 6.5	118 1/4" 118 1/4" 118 1/4"
C-20008 C-20024 C-20027	208 240 277	2000 2000 2000	9.6 8.3 7.2	132" 132" 132"

Download Instructions (PDF)

Installation Caution

1)	Do not recess cove heaters
2)	Shut off electric current to circuit on which you are working
3)	Make certain all wiring is in accordance with local codes and units are grounded
4)	Check voltage rating of heater to make certain it is the same as supply voltage
5)	Never install heater without supplied wall brackets
6)	Maintain one inch clearance below heater and any fabric
7)	Heater should not be blocked in any manner
8)	Do not paint heater in any manner
9)	Do not mount closer than 4 1/2” from false ceilings, vinyl ceilings and plastic moldings
10)	Do not use plastic conduits for direct connection to comfort cove
11)	Allow 1” clearance between heaters - do not “butt” end to end
12)	Allow 12 1/2” clearance from top of heater for lath & plaster ceilings
13)	Have a question? Factory direct line 1-800-314-9303

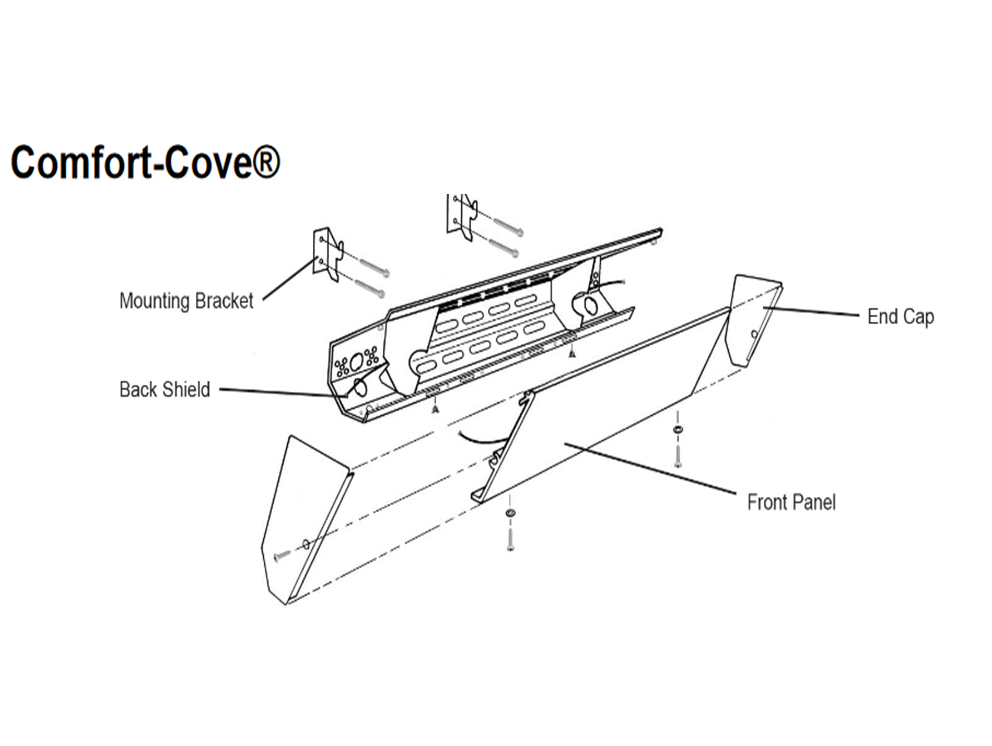

Mounting Units to the Wall

1) Locate a wall stud for each bracket provided, such that when heater is attached to brackets, they divide heater length into equal increments (thirds).

2) Attach brackets to wall studs with wood screws provided, use template provided to mark screw locations depending upon type of ceiling.

3) Attach back shield to brackets by tilting back shield back and allowing back shield slot to fall onto bracket hook then simply bring back shield forward locking into place.

4) Hang front panel on back shield and complete wiring as directed.

5) Secure front panel to back shield with painted screws and teflon washers provided.

6) Complete wiring as directed below.

7) Attach end caps.

8) Loosen the two outermost painted screws holding the painted front panel in place about one revolution (this is to allow for expansion).

9) Do not “butt” heaters end to end.

10) When the comfort cove is first energized, an initial break-in fragrance may be noticed - this is normal.
